Disc Magnet Factory Directly Shipping Best Neodymium Magnets
35 Years Magnet Production Experience
Free Sample, OEM&ODM, Fast Supply
Specification
| Properties | Br | HcB | HcJ | (BH)max | Temp. Coef. | Tw | |||||
| Grade** | Typical mT | Typical gauss | min kA/m | min oersteds | min kA/m | min oersteds | min kA/m | min oersteds | α(Br) %/°C | α(HcJ) %/°C | max °C |
| N35 | 1210 | 12100 | 860 | 10800 | 955 | 12000 | 283 | 35 | -0.12 | -0.618 | 80 |
| N35X | 1210 | 12100 | 860 | 10800 | 955 | 12000 | 283 | 35 | -0.11 | -0.618 | 80 |
| N38 | 1260 | 12600 | 860 | 10800 | 955 | 12000 | 306 | 38 | -0.12 | -0.618 | 80 |
| N40 | 1285 | 12850 | 923 | 11600 | 955 | 12000 | 318 | 40 | -0.12 | -0.618 | 80 |
| N42 | 1315 | 13150 | 860 | 10800 | 955 | 12000 | 334 | 42 | -0.12 | -0.618 | 80 |
| N45 | 1350 | 13500 | 860 | 10800 | 955 | 12000 | 350 | 44 | -0.12 | -0.618 | 80 |
| N48 | 1400 | 14000 | 836 | 10500 | 875 | 11000 | 374 | 47 | -0.12 | -0.618 | 80 |
| N50 | 1425 | 14250 | 836 | 10500 | 875 | 11000 | 390 | 49 | -0.12 | -0.618 | 80 |
| N52 | 1450 | 14500 | 836 | 10500 | 875 | 11000 | 406 | 51 | -0.12 | -0.618 | 60 |
| N33M | 1175 | 11750 | 836 | 10500 | 1114 | 14000 | 267 | 34 | -0.12 | -0.595 | 100 |
| N35M | 1210 | 12100 | 868 | 10900 | 1114 | 14000 | 283 | 35 | -0.12 | -0.595 | 100 |
| N35MX | 1210 | 12100 | 868 | 10900 | 1114 | 14000 | 283 | 35 | -0.11 | -0.595 | 100 |
| N38M | 1260 | 12600 | 899 | 11300 | 1114 | 14000 | 307 | 39 | -0.12 | -0.595 | 100 |
| N40M | 1285 | 12850 | 923 | 11600 | 1114 | 14000 | 322 | 40 | -0.12 | -0.595 | 100 |
| N42M | 1315 | 13150 | 955 | 12000 | 1114 | 14000 | 338 | 42 | -0.12 | -0.595 | 100 |
| N45M | 1350 | 13500 | 971 | 12200 | 1114 | 14000 | 354 | 44 | -0.12 | -0.595 | 100 |
| N45MX | 1350 | 13500 | 971 | 12200 | 1114 | 14000 | 354 | 44 | -0.11 | -0.595 | 100 |
| N48M | 1395 | 13950 | 995 | 12500 | 1114 | 14000 | 378 | 48 | -0.12 | -0.595 | 100 |
| N30H | 1105 | 11050 | 796 | 10000 | 1353 | 17000 | 235 | 30 | -0.12 | -0.572 | 120 |
| N33H | 1175 | 11750 | 836 | 10500 | 1353 | 17000 | 267 | 34 | -0.12 | -0.572 | 120 |
| N35H | 1210 | 12100 | 868 | 10900 | 1353 | 17000 | 283 | 35 | -0.12 | -0.572 | 120 |
| N38H | 1260 | 12600 | 899 | 11300 | 1353 | 17000 | 307 | 39 | -0.12 | -0.572 | 120 |
| N38HX | 1260 | 12600 | 899 | 11300 | 1353 | 17000 | 307 | 39 | -0.11 | -0.572 | 120 |
| N40H | 1285 | 12850 | 923 | 11600 | 1353 | 17000 | 322 | 40 | -0.12 | -0.572 | 120 |
| N40HX | 1285 | 12850 | 923 | 11600 | 1353 | 17000 | 322 | 40 | -0.11 | -0.572 | 120 |
| N42H | 1300 | 13000 | 955 | 12000 | 1353 | 17000 | 330 | 41 | -0.12 | -0.572 | 120 |
| N45H | 1350 | 13500 | 971 | 12200 | 1353 | 17000 | 354 | 44 | -0.12 | -0.572 | 120 |
| N45HX | 1350 | 13500 | 971 | 12200 | 1353 | 17000 | 354 | 44 | -0.11 | -0.572 | 120 |
| N48H | 1390 | 13900 | 1011 | 12700 | 1273 | 16000 | 378 | 48 | -0.12 | -0.572 | 120 |
| N30SH | 1125 | 11250 | 811 | 10200 | 1592 | 20000 | 243 | 31 | -0.12 | -0.549 | 150 |
| N30SHZ | 1125 | 11250 | 804 | 10100 | 1592 | 20000 | 243 | 31 | -0.10 | -0.549 | 150 |
| N33SH | 1175 | 11750 | 844 | 10600 | 1592 | 20000 | 267 | 34 | -0.12 | -0.549 | 150 |
| N33SHX | 1175 | 11750 | 844 | 10600 | 1592 | 20000 | 267 | 34 | -0.11 | -0.549 | 150 |
Magnetization Direction

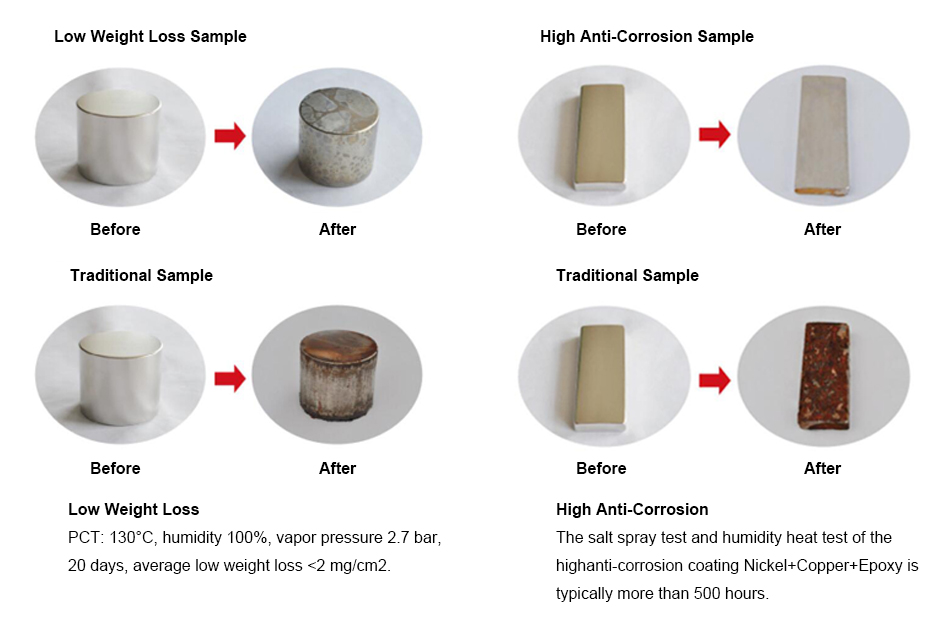

Coating
High Consistency
Application Industries
